Product features
1.The machine can feed plastic film to the paper by the full servo motor with accurate film breaking size and high placement accuracy
2.The paper feeding adopts unique air suction technique with imported wear-resistant perforated belt .the advantage of this machine is high speed and no sheet loss
3.The film breaking knife adopts the most advanced materials and is made by professional manufacturers. While ensuring the hardness, it improves the wear resistance and has a long service life.
4.The gluing part adopts advanced glue sticking structure to save glue amount and facilitate adjustment. A pneumatic separation device is to prevent glue from sticking to the belt
5.The air suction belt adopts the imported perforated belt to ensure that the paper has no stall, no displacement and accurate pasting
6..The paper receiving part adopts inch structure , which is convenient for receiving
Product features
| Model | TC-1100 |
| Blank paper weight | 200 g/m² -1000 g/m² |
| Output per hour | 10000 pieces |
| Size range of blank paper | Min.200mm x 200mm |
| Max.1100mm x 650mm |
| Size range of window | Min.40mm x 80mm |
| Max.380mm x 500mm |
| Film thickness | 0.05mm - 0.20mm |
| Connected load | |
| Weight | 2500 kg |
| Dimensions | 4500mm x 2000mm x 1600mm |
| Raw Paper Core Diameter | φ76mm |
| carton weight | 200-500g/㎡ |
| thickness | ≤3.0mm |
| max. diameter of plastic sheet roll | φ500mm |
Package
Our company
Free Pre-Sales Consulting
Hainan Bojun Trading Co., Ltd. offers 12 hours quick pre-sales response and free consulting. We will try our best to make quick delivery to all of you.
After-Sales Service
Guarantee repair: relevant repair service will be provied during the quality warranty period. Reasonable charge occurs for spare parts and maintaining service after the quality warranty period.
Telephone investigation
Our after-sales team will phone the user during the warranty period to follow up the working condition of the products, and to discover and solve problems, if necessary. For more detailed information on our machinery, please do not hesitate to contact us!
FAQ
Q1: Are you a factory or trading company?
A: We are a manufacturer and have our trading company. Our factory is specializing in producing carton machinery for over 20 years.
Q2: Where is your factory located? How can I visit there?
A: Our factory is located in Dongguan County Hebei Province, which is the main production site for carton machinery in China.
Q3: How about the quality of the products?
A: We have the best professional engineer and a strict QA and QC system.
Q4: Can we be your distributor or agent?
A: We are looking for distributors and agents all over the world.
Q5: How is the warranty of the machine?
A: Our products have 12 monthly warranties, including the core components.
Q6: How’s the delivery time?
A: It depends on the quantity and the specific machinery that you order.
Q7: What terms of payment do you accept?
A: Usually, we accept T/T payment with 30% of the total amount as a deposit., The last 70% payment will be finished before delivery. And L/C will be acceptable.
Q8: Is it safe for me to pay directly as we are the first time to cooperate?
A: We can do business on Alibaba as your concern, which is a platform that is insuring the interest of both parties.
Product Tags:
|
|

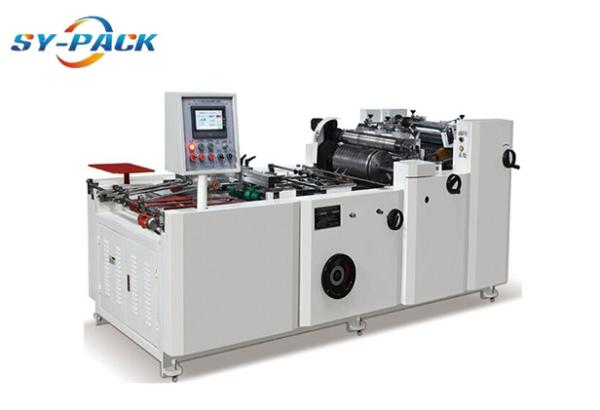

Wear Resistant 380V Automatic Window Patching Machine 12000pcs/H Images
|
